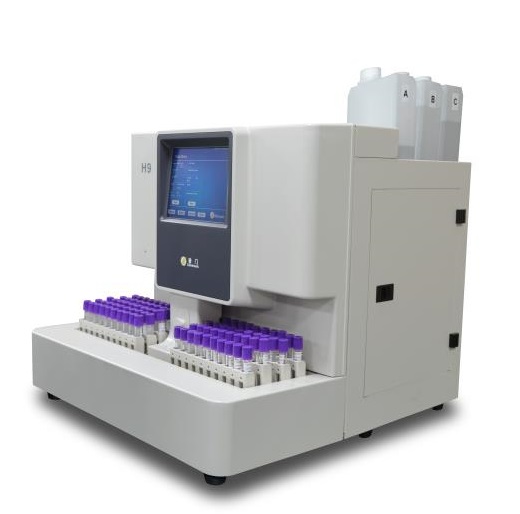

H9 Fuly Automated HPLC HbA1c Analyzer

Fully Automated High Performance Liquid Chromatography System

IFCC and NGSP Certified


High Performance HPLC System with option for Fast, Variant and β thelasamia mode to give you freedom of customise testing.


  • Gold Standard of Diabetes Diagnose
  • Glycosylated hemoglobin (HbA1c) is widely recognized as a Gold Standard to monitor diabetes, which can indicate the average plasma glucose concentration over 8~12 weeks.
  • High-Performance Liquid Chromatography (HPLC), to separate HbA1c directly with measuring the absorbance points continually to form chromatogram. Using normal distribution curve fitting auto-iterative algorithm to get precise HbA1c testing result, excluding interference of variant and unstable hemoglobin like HbF. Standard Analysis Mode will report HbA1a、HbA1b、HbF、HbA1c、P3、HbA0 peak areas and ratio. And the result also includes IFCC, NGSP and ADAG value for diverse client needs.


Methodology High-Performance Liquid Chromatograhy (HPLC)
Test Mode Fast Mode, Variant Mode and β-thalassemia mode
Test Range 3% - 18%
Precision CV≤1%
First Sample Result 2.4 Mins
Test Speed Fast Mode: 1.2 Mins/Sample
Variant mode: 1.6 Mins/sample
Sample Type Venous blood, Finger peripheral blood, Lyophilized whole blood
Sample Volume 5ul
Auto Sample Station 110 Position+1 Stat Position
Photometer 415nm+500nm LED, 20000 Hours Life Span
Chromatography Column 1600 Tests
Filter ~400T
Display 8"TFT True Colour LCD Touch Screen
Software Embedded System with Self Diagnostic to monitor and detect system error
Reagent kit Eluent A, Eluent B, Eluent C, Hemolysin, Calibrator, QC Material
Information Input Scanner or Touch Keypad
Storage 40,000 Sample results
Connection RS232, USB, LIS
Printer Thermal Printer
Operating Temperature 12~35°C
Humidity 10~70%
Power AC 100-240 50/60Hz, 150VA
Dimensions 580 x 500 x 520 (HxWxD in mm);
Weight 50Kg
Barcode Scanner Built-in Automatic Scanner

Test Result
