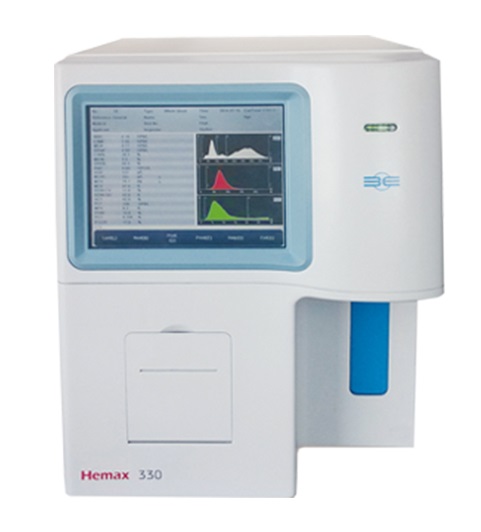

HEMATOLOGY ANALYZER

Hemax 330

Fully Auto Hematology Analyzer

3 Part Differential with dual Chamber

Based on ElectricaI resistance principle for counting WBC, RBC and PLT

Quick Features

  • 20 parameters+ 3 Histograms for WBD, RBC and PLT
  • 3-part differentiation of WBC
  • 3 Counting rnode: whole blood ,Pre-dlilulted Blood,Peripheral Blood
  • LCD display with touch screen and Mouse Operation
  • Throughput: 60 samples per hour
  • Buillt-in thermal printer, optional external printer
  • External AC adapter avoids electronic noises, enhancing accuracy
  • Up to 50,000 sample results (including histograms) can be stored
  • Multi—language software available on request

Technical Details

Parameter Specification
Principle Electrical resistance for counting WBC, RBC and PLT
Sample Type & Volume Whole Blood : 9.8µl,
Pre-diluted Blood: 20µl
Peripheral Blood: 9.8µl
Accuracy WBC: 2.0%
RBC : 1.5%
HGB : 1.5%
MCV : 0.4%
PLT : ≤4%
Carry over WBC/RBC/HGB <0.5%, plt<1.0%
Parameter WBC, LYM#, MID#, Gra#, LYM%, MID%, GRA%, HGB, MCHC, MCHC, MCH, MCV, HCT, RDW-SD, PLT, MPV, PDW, PCT, P-LCR And Histograms for WBC, RBC and PLT
Throughput upto 60 samples per hour
Input Touch screen, Mouse & Keyboard
Operating Environment Temperature: 15°C~35°C
Humidity: ≤80%
Output Large TFT display
Power requirement AC 110V-220V, 50/60Hz
Dimensions 478 x 330 x 395 (mm, LxWxH)
Weight 23kg
Port 3 USB port, RS232 & LAN
